100 gallon copper pot still

Our 100 gallon copper pot stills is crafted from high quality TP2 red copper, the natural luster of the red copper and the elegant lines of the design make it stand out from the rest.

The interior and exterior of the still are carefully polished to ensure durability and sealing. Fish ripple shell designs are not only visually appealing, but are also highly efficient at increasing surface area and improving heat exchange efficiency.

$13,300.00

in stock
Contact Us By WhatsApp +86 18626835909
View Product Video
  • Any size can be customised
  • Global delivery
  • 10-year warranty
  • We can put your logo on the equipment.
  • Email:info@ace-chn.com
  • Phone：+86 18626835909
  • WeChat：ace-chn
  • Feel free to visit our factory or video teleconference.
  • Provision of equipment drawings
Product Description

Specifications:

  1. Inner Pot & Dished Head: Made of TP2 red copper, ensuring durability and efficiency.
  2. Heating Method: Steam heating with a capacity of 50KG/H, ensuring consistent and controlled heating.
  3. Bubble Trays & Sight Glasses: Equipped with 4 bubble trays and 5 TP2 red copper sight glasses, allowing for visual monitoring during the distillation process.
  4. Gin Basket & Condenser: Constructed of SUS304 stainless steel, ensuring corrosion resistance and durability.
  5. CIP Pump: Provides efficient cleaning for the inner pot, helmet, columns, dephlegmators, gin basket, and condenser.
  6. Support Frame & Control Box: Made of SUS304 stainless steel, the frame provides stability while the control box offers ease of operation.

100 Gallons pot stills Configuration:

  1. Total Volume: 110 gallons
  2. Working Volume: 100 gallons
  3. Inner Pot & Dished Head: 3mm thick TP2 red copper, ensuring superior heat conductivity.
  4. Steam Jacket & Outer Shell: SUS304 stainless steel with 4mm and 2mm thicknesses, respectively, providing structural integrity and heat insulation.
  5. Insulation: 50mm thick, ensuring efficient energy conservation.
  6. Accessories: Include φ350 glass manhole, pressure relief valve, thermometer, sight light (24V), cleaning ball, drain valve, steam inlet, steam trap, and a 0.37KW stirring motor.

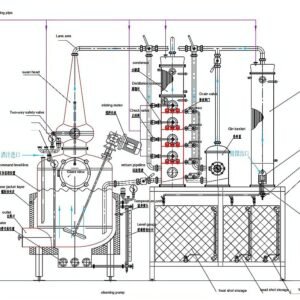

Additional Components:

  1. Copper Helmet: 3mm thick TP2 red copper, providing optimal heat distribution.
  2. Alcohol Pipeline: 1.5mm thick SUS304 stainless steel, ensuring fluid flow efficiency.
  3. Distill Column: TP2 red copper with a thickness of 3mm, measuring DN250*960mm. Includes 4 bubble trays, 5 sight glasses, cleaning balls, copper bubble caps, check valves, and liquid level adjustment levers. Attached with a reflux device and thermometer.
  4. Dephlegmator: 3mm thick SUS304 stainless steel, measuring DN250*300mm. Features a cooling water inlet and outlet, thermometer, and a cleaning ball.
  5. Gin Basket: 3mm thick SUS304 stainless steel, measuring DN250*700mm. Includes a φ100 sight glass, φ250 pressure manhole, cleaning ball, and a copper filter basket.
  6. Condenser: 3mm thick SUS304 stainless steel, measuring DN250*1000mm. Comes with a cooling water inlet and outlet, thermometer, and a cleaning ball.
  7. Wine Mouth: TP2 red copper with a sight glass, allowing for easy monitoring of the distillation process.
  8. CIP Pump: 1.5KW explosion-proof pump (CE certified), ensuring safe and efficient cleaning.
