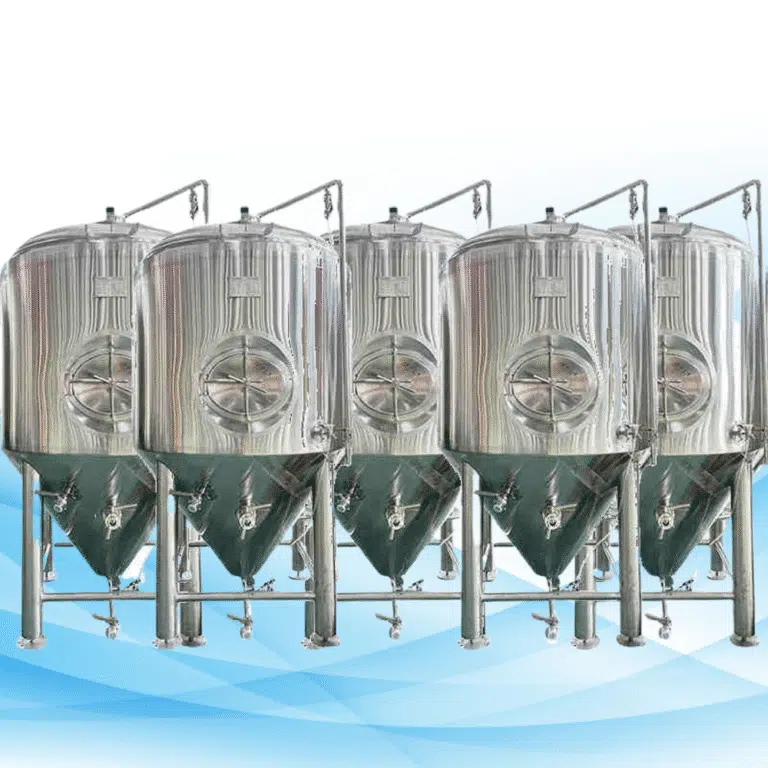

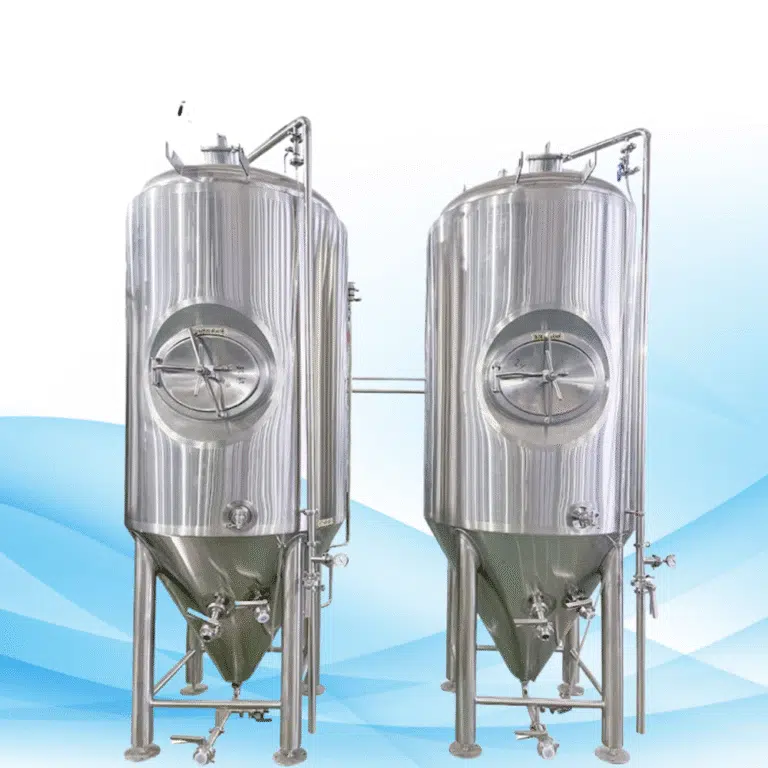

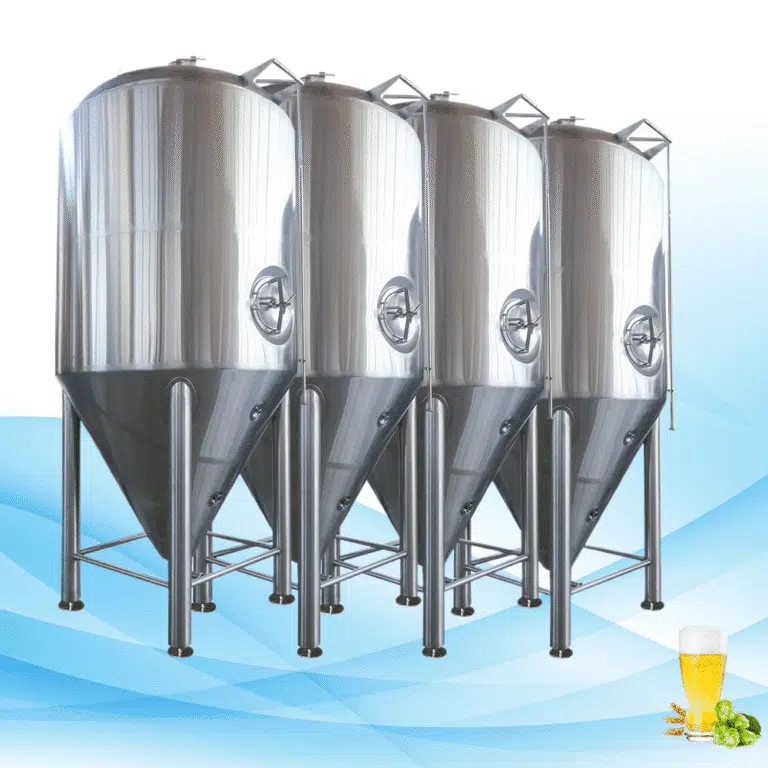

2 bbl conical fermenter

Allow us to introduce our 2 BBL Conical Fermenter that has been manufactured with careful attention to details in order to obtain the maximum performance in fermentation. It was designed and constructed well, and it is made of good quality materials; thus, this fermenter is perfect for a craft brewery with a desire to produce great beer on a consistent basis. The fermenter is converted into Unitank having fitted Unitank parts, thus enhancing versatility and efficiency of this 2 BBL fermenter within the brewing process.

Product Description

Key Features and Advantages:

Sturdy Design:

Made of food-grade 304 or 316 stainless steel; therefore, this fermentor is dependable as well as durable. The two layer design along with the dimple cooling jacket works very well to provide the required temperature at necessary stages of fermentation.

Improved Cooling Performance:

The design of the cooling jacket on the cone top and the bottom of the cylinder, which increases the cooling area. This cooling design plays a critical role in making sure that your beer is at the right temperature throughout the fermentation and storage stage.

Simple to Use and Clean:

The fermenter has a shadowless manway which means cleaning is quite easy. On the other hand, a top manhole that serves a contact brewing process may be modified for more operational convenience.

Precision Engineering:

It has all the necessary design features including lifting ears for ease of rigging, a swivel racking arm for efficient beer pumping, and a round guard plate for enhanced machining accuracy in the design for simple usage for the Ruhinda fermenter.

Safety and Stability:

The fermenter safety device assembly is designed for safety and can function in either a positive or negative pressure mode. Leg structures are highly enhanced using heavy-duty legs with adjust bolts which provide support and make it easy for the tank to be leveled.

Yeast Management:

The cone angle is set at 60 degrees which is the optimal angle for harvesting yeast and thus making the yeast dumping easier, and improving yeast utilization in the fermentation process.

Standard Configuration:

  • There is a 2B finish inner surface which is passivated for effective sanitation.
  • Oversized design makes it possible to have 25% headspace in the fermenter.
  • A sampling valve that is tri-clamped for sanitary sampling.
  • A PT 100 temperature thermowell that has an accurate sensor.
  • A 360 degree CIP spraying ball for thorough cleaning.
  • A pressure relief valve fitted with a pressure gauge.
  • A lifting bar located along the top edge of the structure for purpose handling.
  • A safety valve fitted with a 60° yeast dumping outlet for easy yeast disposal.

Optional Configuration:

  • Temperature display gauge.
  • Separate blow-off pipe and cip system.
  • Carbonation stone for Co2 infusions.
  • A side wall of the container fitted with a liquid level display.
  • Bunging apparatuses/Spunding Valve.

Technical Specifications:

  • Working Volume: 2 barrels
  • Overall Volume: 2.5 barrels
  • Material: Stainless Steel AH 316/AH 304
  • Effective surface area: 1Sq. mtr
  • Working pressure for inner jacket is 0.4MPa and that for cooling jacket is 0.5Mpa
  • Design pressure of the inner Jacket is 0.2Mpa and that of the cooling jacket is 0.3Mpa.
  • Overall Size: Compact size, suit low and medium Breweries.

This 2 BBL Conical Fermenter offers a durable structure, functional design, and necessary features such that your brewing process is conducted in an effective, dependable, and productive manner yielding good quality beer. Whether you are looking to increase the volume of your brewery or you are about to make your first step, this fermenter will serve your craft brewing purposes efficiently.
