Key Advantages:
- Efficient Equipment Positioning: The fermenter is supplied with lifting ears for hoisting the vessel, making installation smooth.
- Flexible Option for Beer Transfers: A racking arm and movable elbow help avoid any inconveniences in beer delivery, irrespective of the brewery’s design.
- Precision Engineering: An elliptical guard plate at the junction of the outriggers and the lower cone allows for sharper machining, increasing strength and operational effectiveness.
- Alignment and Stability: Tank rails utilize an adjustable bolt to assure the tank alignment leveled with the designed location.
- Easy To Operate: The clamp connecting the material port to the tank bottom can be rotated, simplifying procedures.
- Aesthetically Pleasing and Long-Lasting: The underside of the Bright tank has crossovers to enhance the appearance of the finished product, which is neat, robust, and durable.
- Improved CO2 Distribution: All bright tanks are fitted with carbon stones for effective carbon dioxide injection.
- Ease of Cleaning: The shadowless manway design enhances cleaning, and customization of the top manhole depending on the fermentation process is possible.
- Adequate Headspace: The design of the tank includes sufficient headspace, with the total volume excluding that of the upper head.
- Cooling: Cooling jackets are provided on the upper part of the cone and the lower part of the cylinder to ensure sufficient cooling area.
- Safety Assurance: High-level safety features with a safety device and positive and negative pressure opening functions.
- Yeast Control: The 60-degree cone angle allows for brisk yeast excretion.
- Convenient Operation: A ladder has been provided for easy access and operation.
Standard Configuration:
- Material: Dairy stainless steel, food-grade 304/316.
- Cooling Jacket: Double-wall, dimpled design for effective temperature control.
- Inner Surface Finish: 2B finish, passivated to improve cleanliness.
- Capacity: Oversized, with a 25% headspace allowance for fermentation.
- Sampling Valve: Full sanitary tri-clamp valve for effective sampling.
- Manway: Top pressure or side shadowless manway access manhole.
- Temperature Control: PT100 sensor thermowell for precise temperature measurements.
- Racking Arm: A rotating racking arm on the cone for smooth beer transfer.
- Dry Hops Port: 4/6 inch port for dry hopping.
- CIP System: Chevy-type CIP ball for 360-degree cleaning coverage.
- Ice Water Connections: Threaded pipes for efficient cooling water flow.
- Pressure Management: Safety pressure valve and gauge fitted on top of the tank.
- Stability: Heavy-duty legs with adjustable bolts for secure positioning.
- Yeast Outlet: 60-degree outlet designed for yeast dumping.
Optional Configuration:
- Thermometer on the process vessel
- Separate blow-off pipe & CIP
- CO2 cylinder connected to an infusion stone
- Liquid level sight glasses fitted on the wall of the brewhouse
- Bunging apparatus/ Spunding Valve
Specifications:
- Capacity: Nominal volume: 600 gallons / Effective volume: 500 gallons
- Nominal Dimensions: 1700*3350mm
- Material: Stainless steel grade 304 and grade 316
- Automation: PLC system by Siemens or PID system by Schneider/ABB
- Cooling Area: 43 square feet
- Finish Options: Polished, Brushed, Mirror finish, Pickling passivation
- Polishing Accuracy: No more than 0.4
- Operating Pressure: 0.4 MPa for the inner jacket; 0.5 MPa for the cooling jacket
- Design Pressure: 0.2 MPa for the inner jacket; 0.3 MPa for the cooling jacket

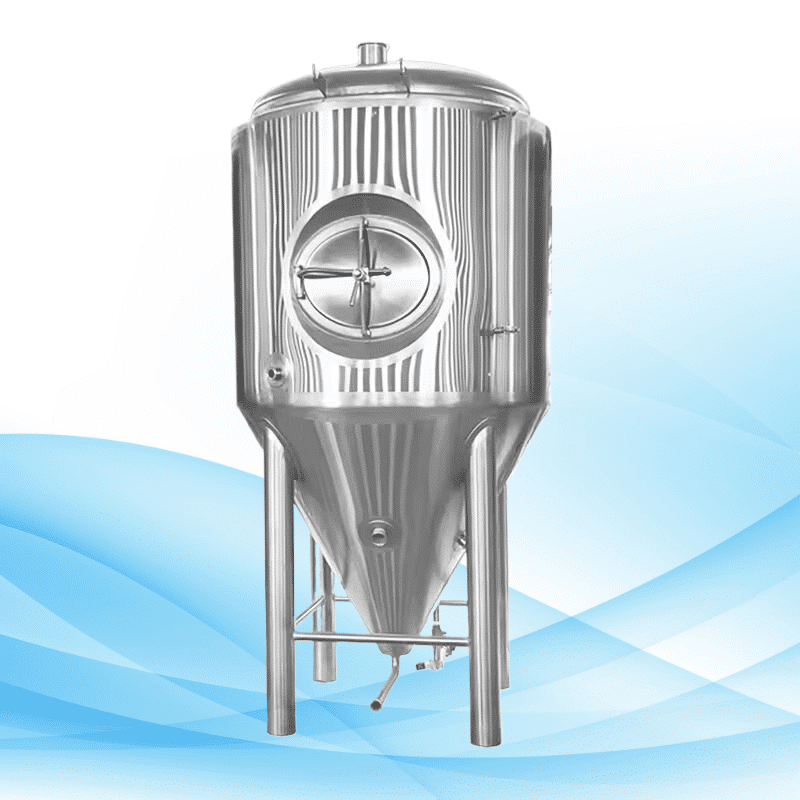

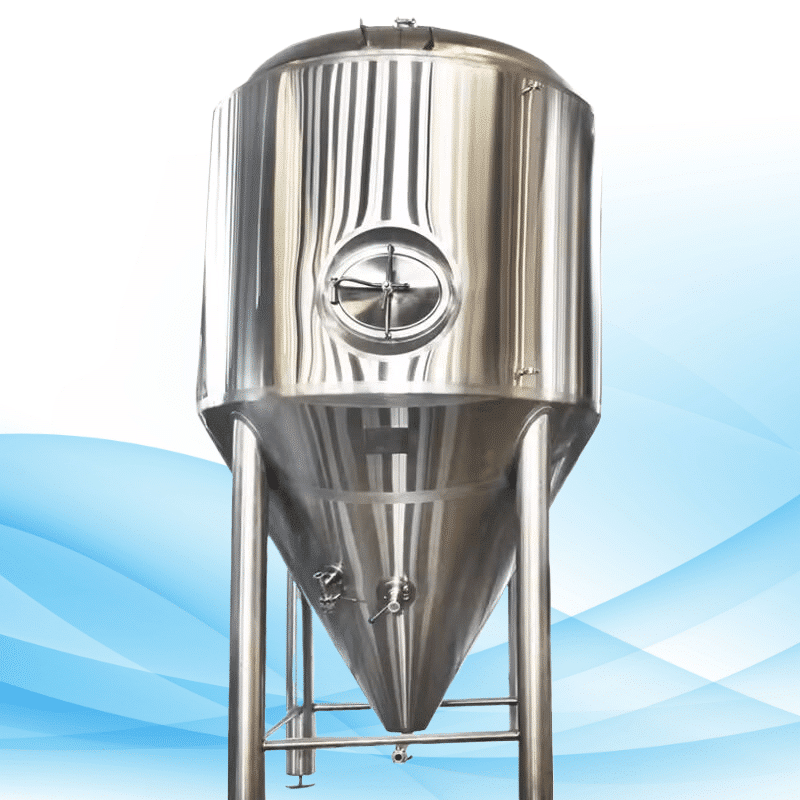

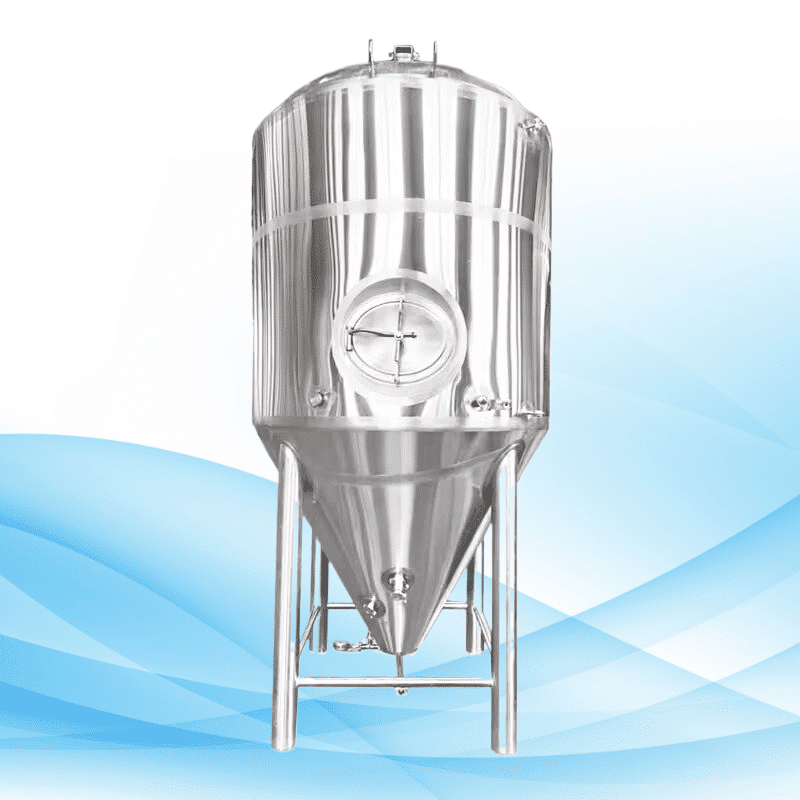

Equipped with a solid construction, state-of-the-art elements, and adjustable dimensions, the 20 BBL Conical Fermenter by Ace stills is exactly what brewers need to improve their fermentation operations.
