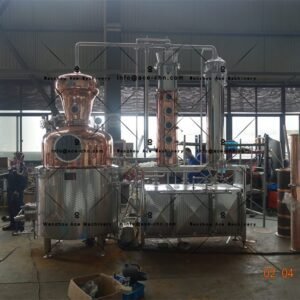

Whiskey Pot Still Key Components and Specifications

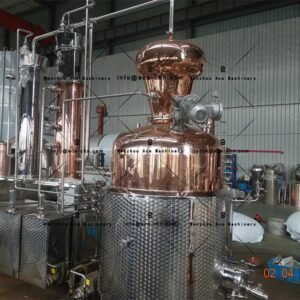

Still Pot
- Volume: Total 220 gallon, working volume 200 gallons
- Inner Pot: TP2 red copper, thickness 3mm
- Dished Head: TP2 red copper, thickness 3mm
- Outer Shell: SUS304 stainless steel, fish scale plate, thickness 2mm
- Jacketed: 50mm insulation
- Heating Method: 1KW, (415V/50hz/3ph electric heating rods)
- Accessories: φ250 manhole, level gauge, pressure relief valve, thermometer, sight light, etc.

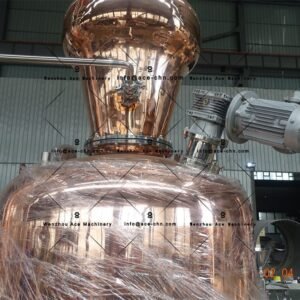

Copper Head
Material: TP2 red copper, thickness 3mm
Material Separator
Material: TP2 red copper
Distillation Column
Material: TP2 red copper, thickness 3mm
Size: Φ152
Features: 4 bubble trays, 5 sight glasses, attached reflux device, thermometer
Dephlegmator
Material: TP2 red copper, thickness 3mm
Size: Φ152
Features: Cooling water inlet and outlet, thermometer
Condenser
Material: SUS304 stainless steel, thickness 3mm
Size: Φ152
Features: Cooling water inlet and outlet, thermometer
Stainless Steel Bracket
Includes: 1*30L collection bucket

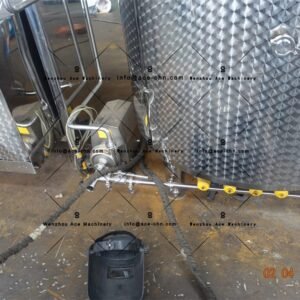

CIP Cleaning Pump
For convenient cleaning of the equipment
Alcohol Pipeline
Material: TP2 red copper, thickness 1.5mm
Wine Mouth
Material: TP2 red copper with glass
Technical Features
- High-quality Materials: TP2 red copper and SUS304 stainless steel ensure corrosion resistance and stability.
- Efficient Heating: Interlayer steam heating ensures uniform heat distribution and improved distillation efficiency.
- Multiple Bubble Trays: Ensures effective separation of impurities during distillation, enhancing the quality of the distilled spirits.
- Insulated Jacket: 50mm insulation layer reduces heat loss and improves energy efficiency.
- Safety Accessories: Includes pressure relief valve, thermometer, and other safety components to ensure safe operation.
Operation and Maintenance
- Easy Operation: User-friendly design for simplified operation.
- Convenient Cleaning: CIP cleaning pump allows for quick and convenient cleaning.
- Simple Maintenance: Clear equipment structure for straightforward maintenance.
